PS Vita play time marathon 2: 5520mAh.

20141104_055511317_iOS

If you’ve not read my original article talking about my 10-hour PS Vita, here it is: https://ycptech.com/2012/06/playstation-vita-10-hour-mod-battery-life-test/

A YCPTech reader certainly read it, however, and decided he would join the fun and get his PS Vita 2000 modded to the max. I’ve stated and he understood that the road to such a mod would be somewhat arduous. It involved shipping his beloved Vita all the way from the US to China, then from China to Hong Kong and then back home. I offered to help bridge between him and the modder in China, who does not understand a word of English. Shipping was also a problem as the modder was not willing or able to ship directly from China to the US so it had to coem to me first, in Hong Kong and then FedEx’d (and ONLY FedEx, as local post office does not accept devices with batteries in them) back to the US.

Long story short, we hatched a plan on the logistics side of things, how to get everything done in the right order… I spent much time with the modder talking about this special case and he understood and did everything he could to help. The Vita journeyed from America on regular post, foregoing insurance, sign-for and tracknig options due to high costs ($50+ with tracking, and $200 with UPS). It ended up taking over a month and plenty of worrying from its owner to reach the modder. But once there, it was practically an hour-long job and was already on its way to HK before I even knew it had arrived in China. It took about 3 days to get to HK, I quickly gave it a tear down, took some pictures and then put it on FedEx and it was home again within just 2 days.

With the boring stuff over, here are the juicy details:

Cost: Total: USD150 (?). $? USPS from US to China., USD$135 for the mod and postage (FedEx) from HK to the US.

Specs: original: 2210mAh, upgraded: 5520

Play time: original: 6 hours~, upgraded: 12 hours (number provided by owner himself)

Tear down

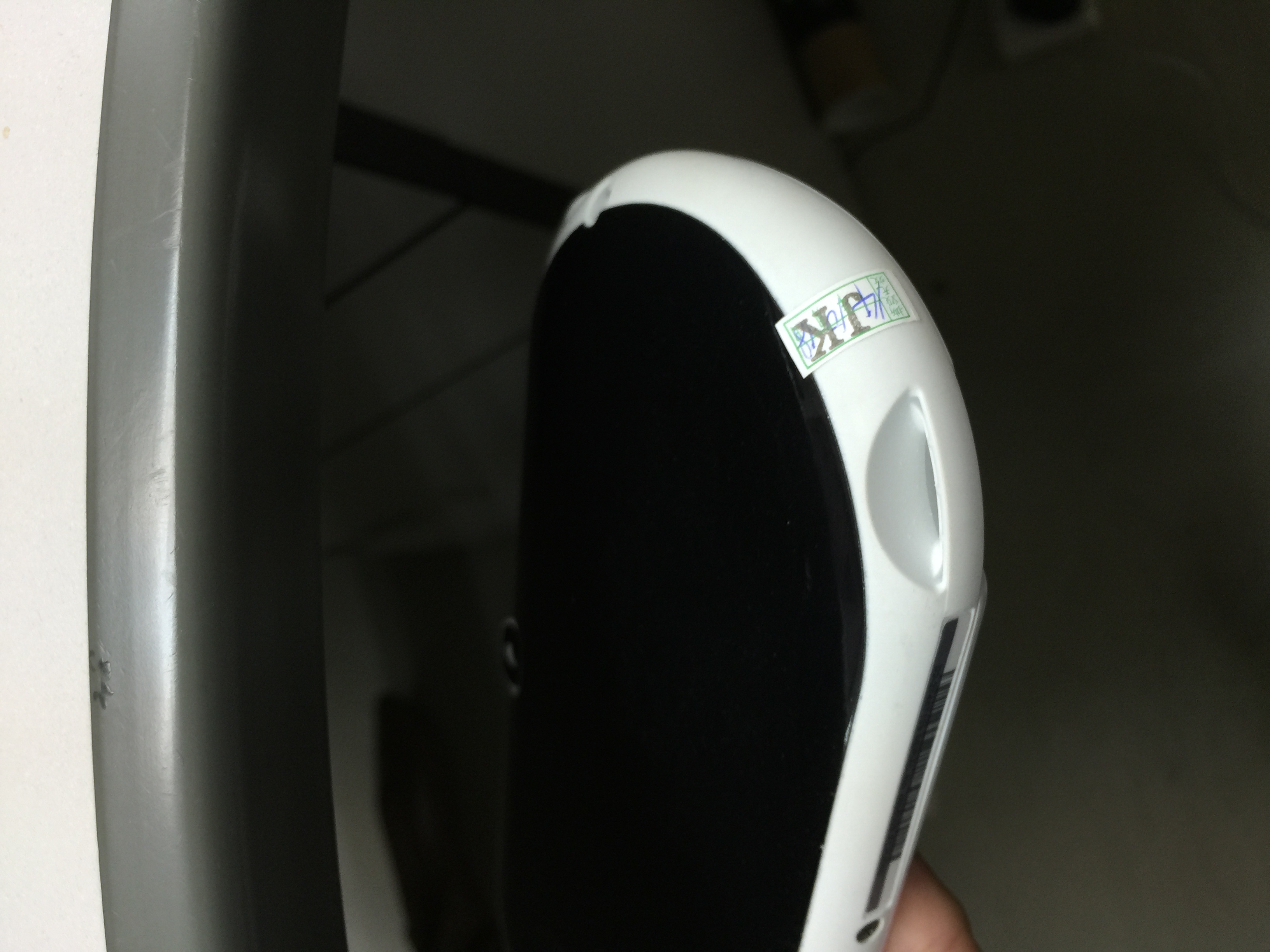

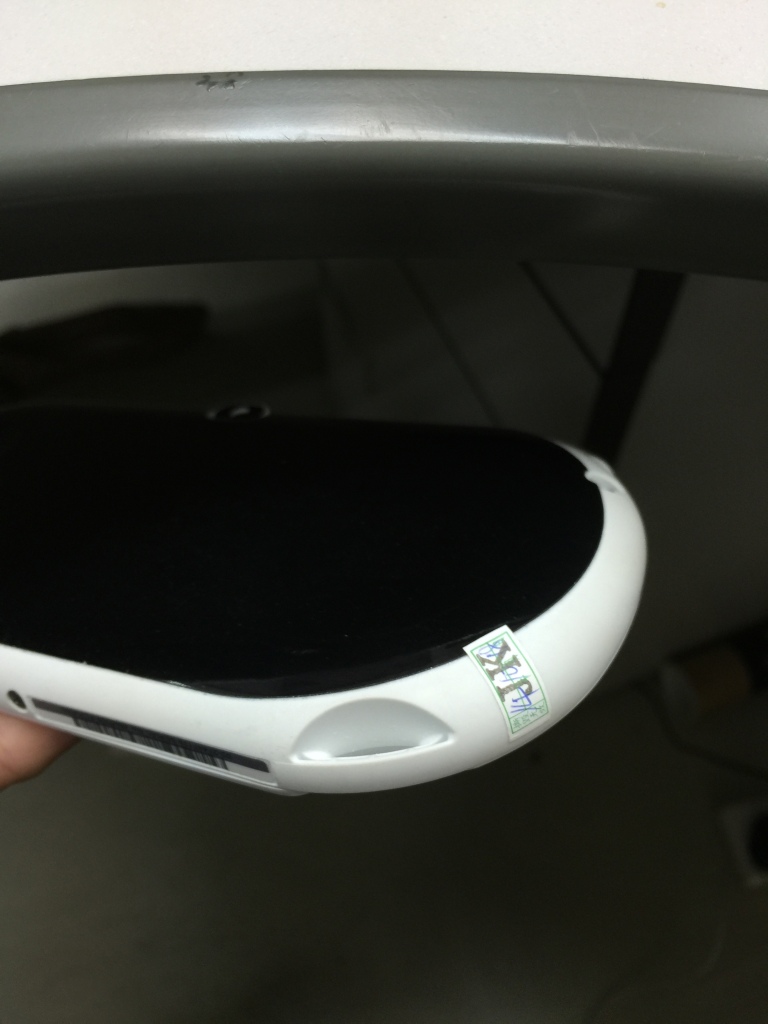

Here it is, back from the modder. It has that same old warranty sticker (that I couldn't peel off without ripping no matter what I tried)
Here it is, back from the modder. It has that same old warranty sticker (that I couldn’t peel off without ripping no matter what I tried)

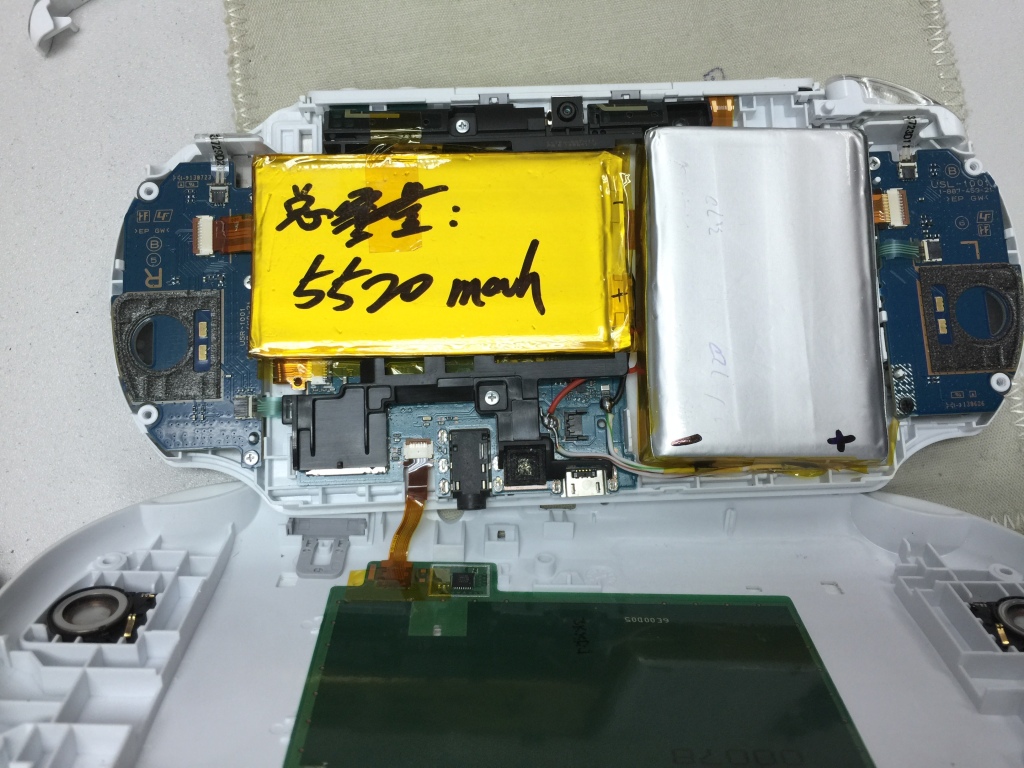

See how the two batteries are positioned?
See how the two batteries are positioned?

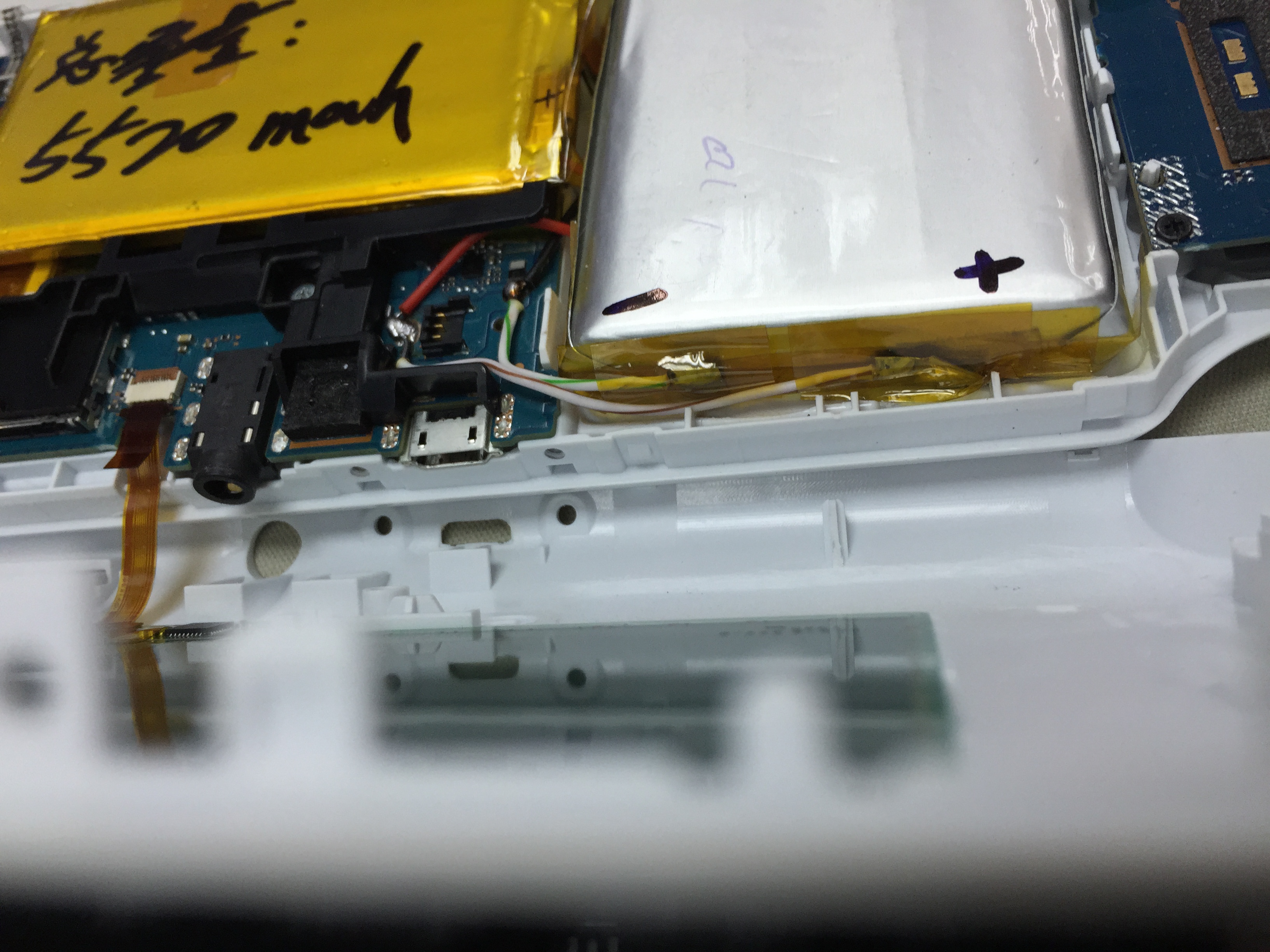

For those who know something about wiring, here's a closeup
For those who know something about wiring, here’s a closeup

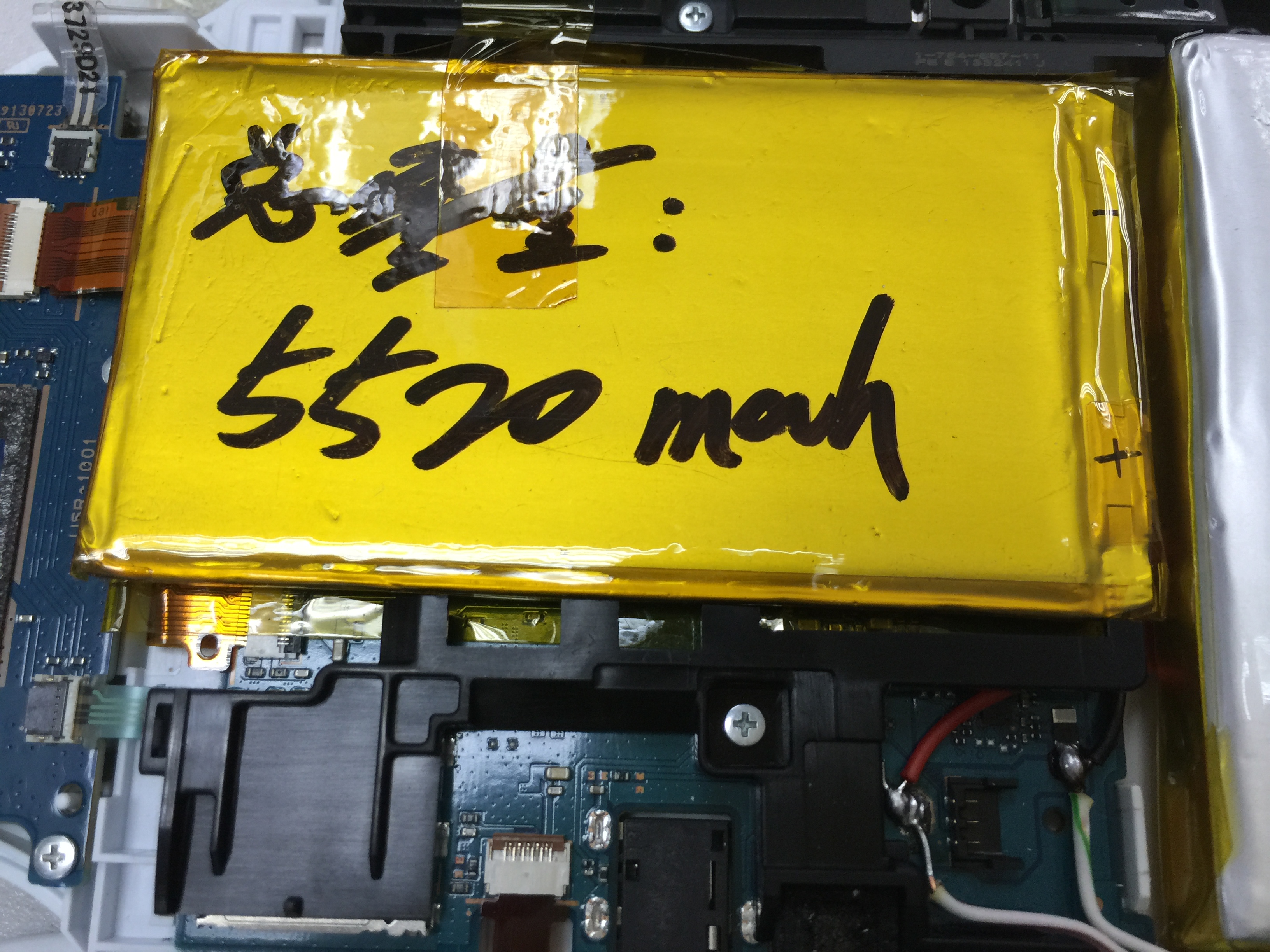

here's one of the batteres. 5520 is the total mAh. It is unclear how much mAh this gold one is worth.
here’s one of the batteres. 5520 is the total mAh. It is unclear how much mAh this gold one is worth.

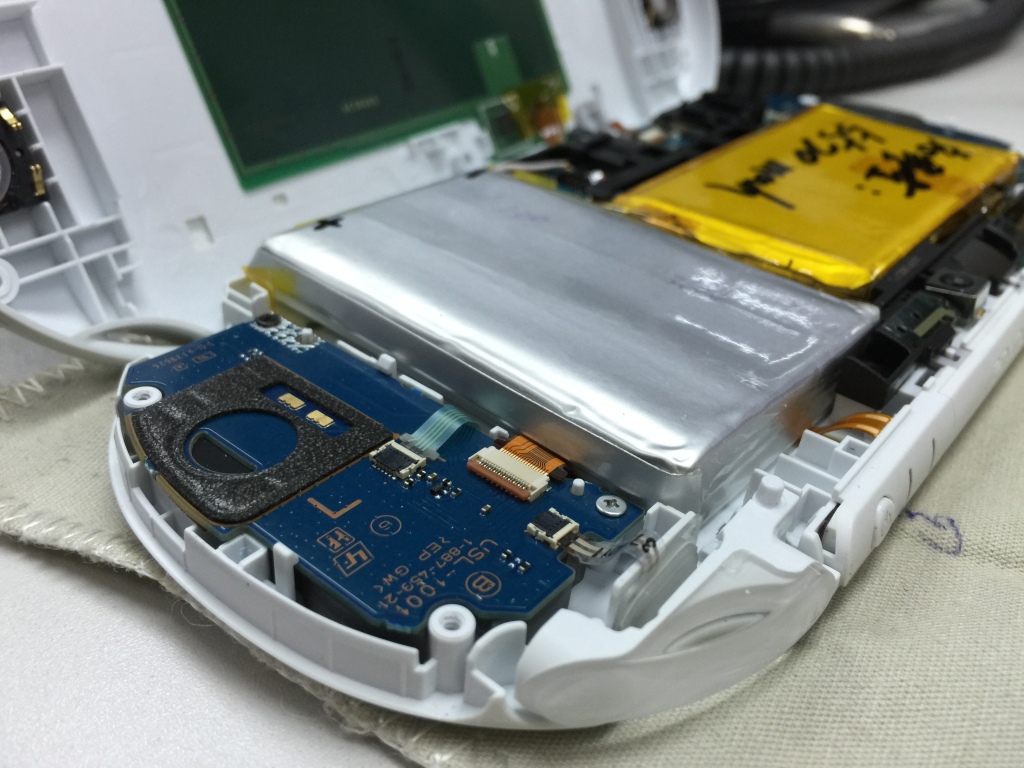

here's that second battery. It's even thicker than that gold one but again, there's no marking stating its mAh.
here’s that second battery. It’s even thicker than that gold one but again, there’s no marking stating its mAh.

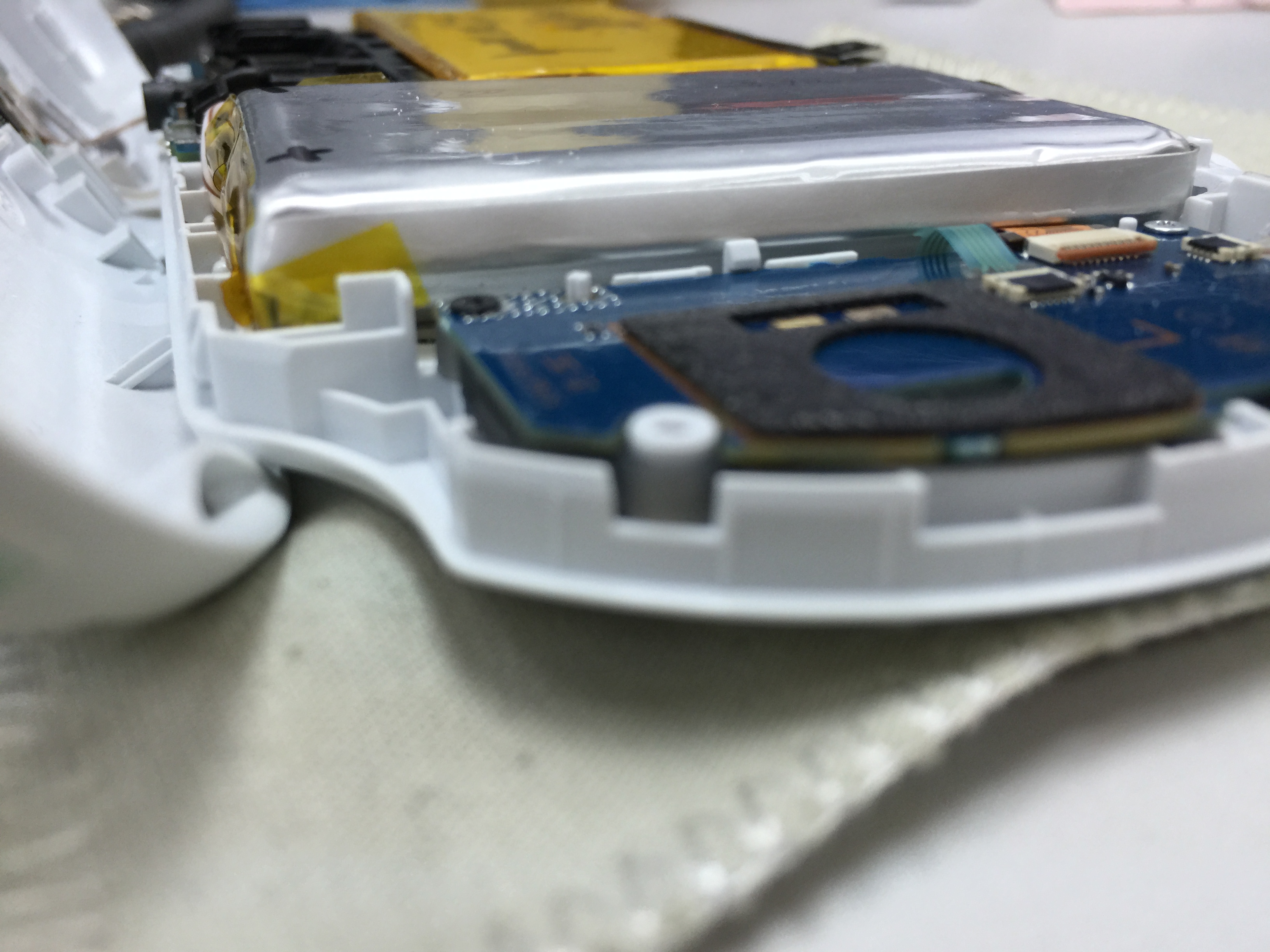

here's a side profile view, you'll have some idea of how thick it really is.
here’s a side profile view, you’ll have some idea of how thick it really is.

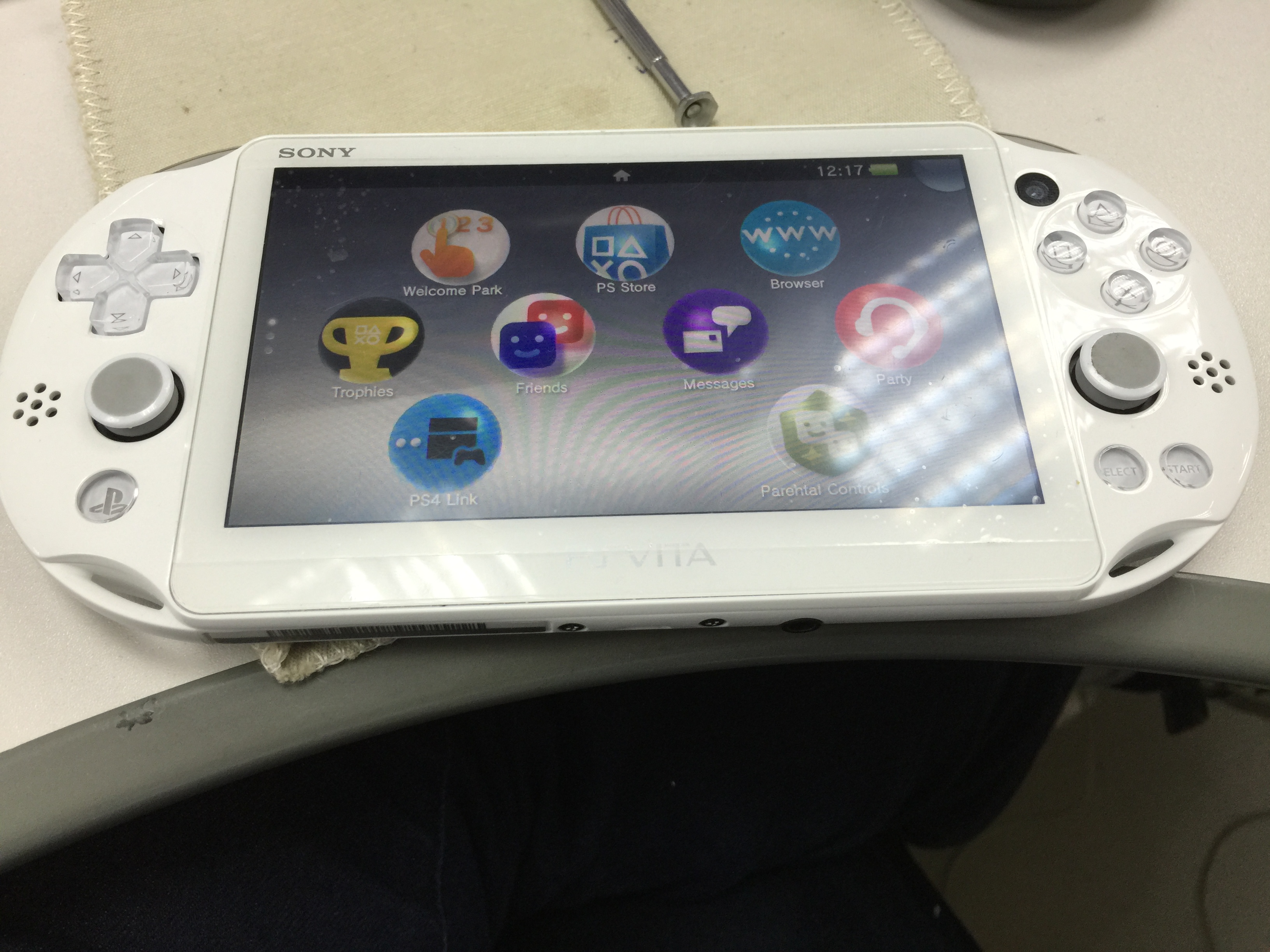

A quick power on test, and off it goes back to its owner.
A quick power on test, and off it goes back to its owner.
